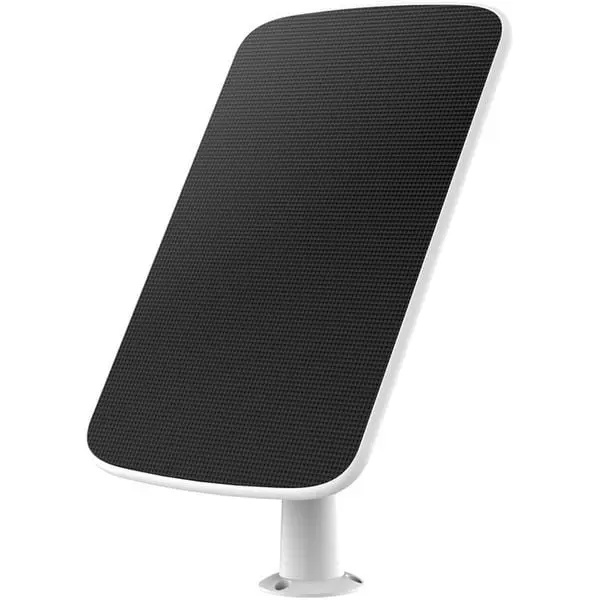

EZVIZ Solar Charging Panel-E
CS-CMT-Solar Panel-E
Designed for EZVIZ Battery Cameras with Type-C Charging Ports
Performance Parameter* *Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25℃, (38000-40000 LUX) | |
|---|---|
| Power Voltage | 6V ± 5% |
| Max. Power current | 1030 mA ± 5% |
| Max. Power | 6.18 W |
| Transformation efficiency | 21.6% |
| Operation Temperature | -20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C ) |
| IP Grade | IP65 |
| Mechanical Data | |
| Manufacturing Process | Monocrystalline solar cells, PET laminated wood |
| Product Dimensions | 283.7 × 185.7 × 2.4 mm (11.17 × 7.31 × 0.09 inch) |
| Packaging Dimensions | 300 × 202.5 × 78 mm (11.81 × 7.97 × 3.07 inch) |
| Net Weight | 484g (17.07 oz) |
| With Package | 854g (30.12 oz) |
| In the box | |
| In the box | - EZVIZ Solar Panel-E |
| - Adjustable Mounting Bracket | |
| - Screw Kit | |
| - Drill Template | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / WEEE / REACH / RoHS |
