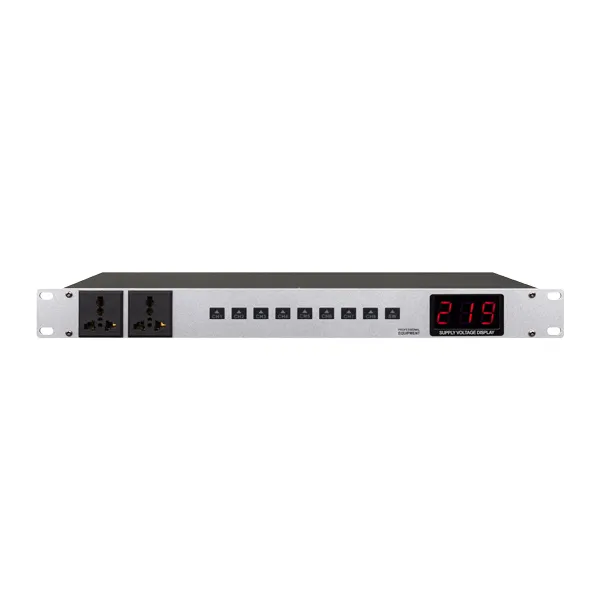

DSPPA Rack-mounted Power Sequence Controller

D6721S

● Each output channel can be switched independently.

● Real-time voltage is displayed on an LCD digital screen.

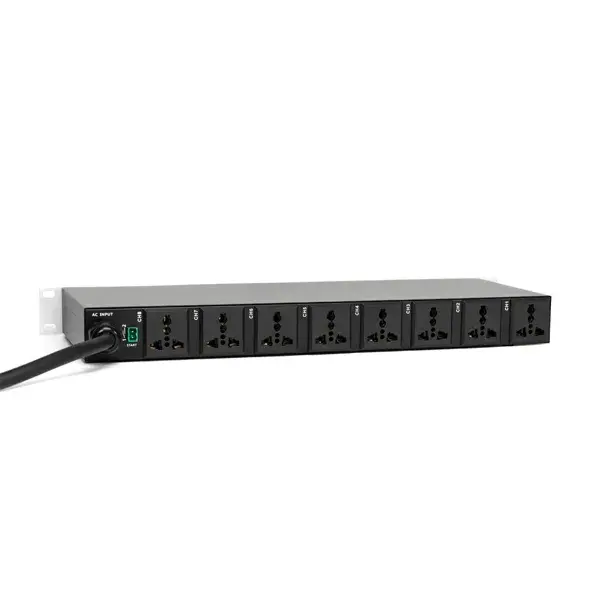

● Supports up to 8 relay-controlled outputs and 2 direct outputs.

● Sequential power-on and reverse power-off functionality.

● 1-second interval between channel activations.

● Each channel supports up to 13A, with a total current capacity of 30A.

● Compatible with AC90–260V, 50–60Hz global voltage standards.

● Built-in switching power supply for stable performance.

● Durable fire-retardant ABS sockets with brass contacts.

● Optional RS232 COM interface for external control.

● Available in iron silver or black panel color.

● Robust internal PCB with reinforced power routing.

● Optional cascading and power filtering available.
