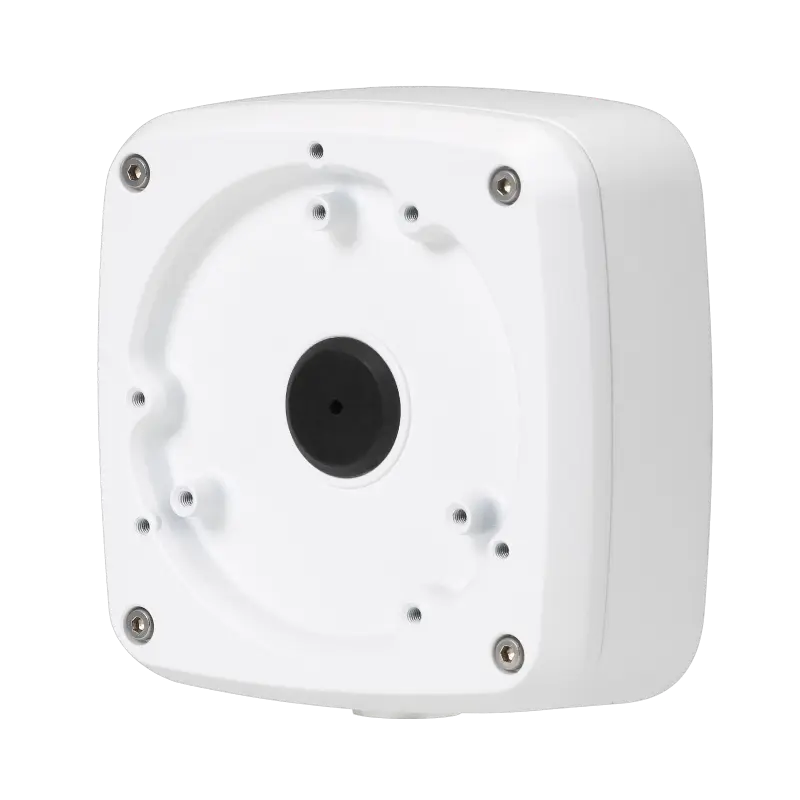

Water-proof Junction Box
DH-PFA123
Specifications
Structure | |
Casing Material | Aluminum alloy |
Product Dimensions | 134.0 mm × 133.5 mm × 52.0 mm (5.28" × 5.25" × 2.05") (L × W × H) |
Appearance Color | White |
Net Weight | 0.54 kg (1.19 lb) |
Gross Weight | 0.64 kg (1.41 lb) |
Load Bearing | 3.0 kg (6.61 lb) |
Installation | Junction mount |
Screw Thread Type | G3/4 |
Applicable Model | Please see "Camera Accessories Selection" |
Packaging Dimensions | 146.0 mm × 65.0 mm × 147.0 mm (5.75" × 2.56" × 5.79") (L × W × H) |
Environment | |
Protection | IP66 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | <90% (RH) |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | 10%–90% (RH) |
Anti-corrosion Level | Basic Protection |
