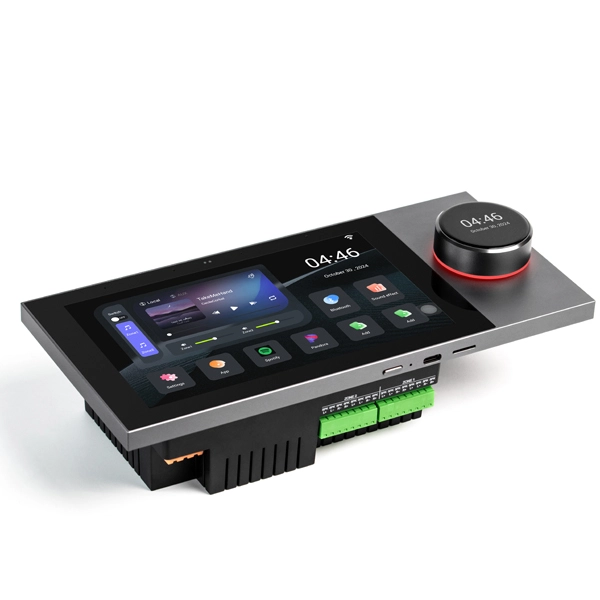

DSPPA 8×10W 7-inch In-Wall Amplifier Wall Panels
DM838T
● Support dual partition music control, 7-inch touch screen, resolution 1024 * 600, easy to operate and control
● Music playback: support MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG and other audio formats.
● Bluetooth: support cell phone search to connect the host to play music
● External audio input: support for external audio sources into the machine, amplify the output
● Time calendar: support clock, calendar display function.
● Memory card function: external TF card, support for 32GB TF card
● USB function: external USB card, support 32GB USB
● Support wired network connection
● With RS485 interface
● Suitable for family, commercial area, children's room, etc.
Model | DM838K | DM838T | |
CPU | Quad-core Cortex 1.6GHZ | ||
RAM | 2G | ||
ROM | 16G | ||
Wired Network | Support | ||
Wireless Network | 802.11b/g/n Wireless Protocol 150Mbps 2.4GHz | ||
Speaker Output | 8*(10-25W)(MAX) (Depending on hardware selected) | ||
Output Impedance | 4-8 Ω | ||
System | Android 11 | ||
Screen | 7-Inch 1024*600 Multi-Touch Control | ||
Power Input | AC100~240V, 50/60Hz | ||
RS485 | Support | ||
Amplifier Parameters | Frequency Response | 20Hz-20Khz | |
Signal-to-noise Ratio | 98dB | ||
Product Size | 237.4*111.8*27.6mm | ||
Weight | 1.49KG | ||
Installation Mode | Front Preinstalled Cable Box | ||
Operating Temperature | 0℃~40℃ | ||
Operating Humidity | 5% to 90%RH Non-Condensing | ||
Zigbee | / | 802.15.4 PHY/MAC Zigbee Network Protocol Stack | |
Wireless Protocol | Bluetooth | Bluetooth, Zigbee | |
Functional Support | Gateway Functions | / | Zigbee Gateway Capability, Can Connect 50+ Sub-devices with flexible control of multi-category Tuya ecosystem devices. |
Music Play | Support Bluetooth, TF Card, USB Disk, AUX Play music. |
