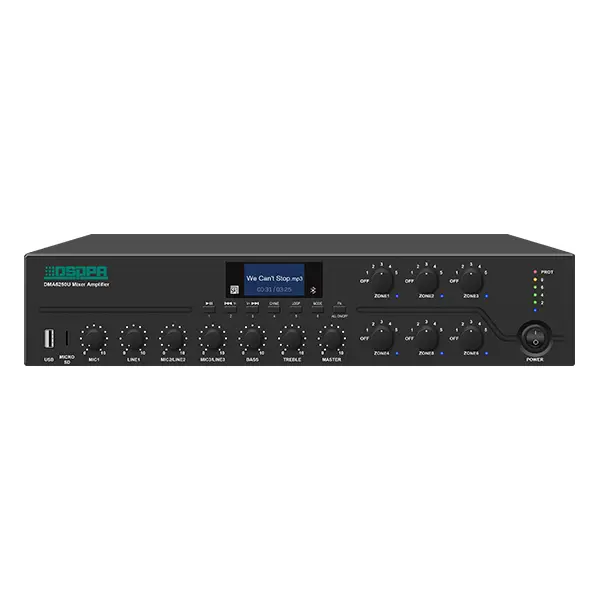

DSPPA 350W 6 Zones Digital Mixer Amplifier with Remote Paging Station
DMA6350U
● 70V/100V & 4-16Ω speaker output
● Rated power:350W
● Input source: 4 Mic, 4 AUX and USB/FM/Bluetooth/TF
● Support 6 remote paging microphones
● With 19" rack mount handles
● Phoenix port for Mic2-4 input ,Line2 input ,EMC input,
● Mute and Siren
● Mic 2-4 with phantom power 48V
● Individual volume control and Bass/Treble adjustment
● Priority: MUTE>EMC IN=SIREN>MIC1=CHIME=
● Remote Mic>Mic2-Mic4/AUX input/Bluetooth/FM/USB
● Protection: Overload, Clipping, Short circuit and temperature protection
● Power supply: AC220V-230V/50Hz/60Hz or DC24V
Model | DMA6250U | DMA6350U | DMA6500U | DMA6650U |
Power | AC220-230V 50/ 60Hz | |||
Input Sensitivity | MIC1 | 5mV ±1mv (Balanced XLR Input) | ||
MIC2/MIC3/MIC4 | 5mV ±1mv (Unbalanced Phoenix Jacks) | |||
AUX1 | 350mV±50mv (Unbalanced RCA Input) | |||
AUX2 | 350mV ±50mv (Unbalanced Phoenix Jacks) | |||
EMC | 350mV ±50mv (Unbalanced Phoenix Jacks) | |||
MIC Frequency Response | 120Hz～12kHz (±3dB) | |||
AUX Frequency Response | 80Hz～15kHz (±3dB) | |||
THD | <1% | |||
Treble Adjustment Range | 10dB（±2） | |||
BASS Adjustment Range | 10dB（±2） | |||
Phantom Power | +48V | |||
Rated Output Power | 250W | 350W | 500W | 650W |
Output Voltage of Port | 4-16Ω,70V,100V(fixed voltage output) | |||
Current | 2A | 3A | 4A | |
Protection | F3.15AL | F6.3AL | F8AL | |
Machine Dimension(D×W×H) | 430×390×88mm | |||
Package Dimension: | 545×500×165mm | |||
Net Weight | 8.6KG | 9KG | 10.1KG | 11KG |
Gross Weight | 9.8KG | 10.2KG | 11.3KG | 12.2KG |
