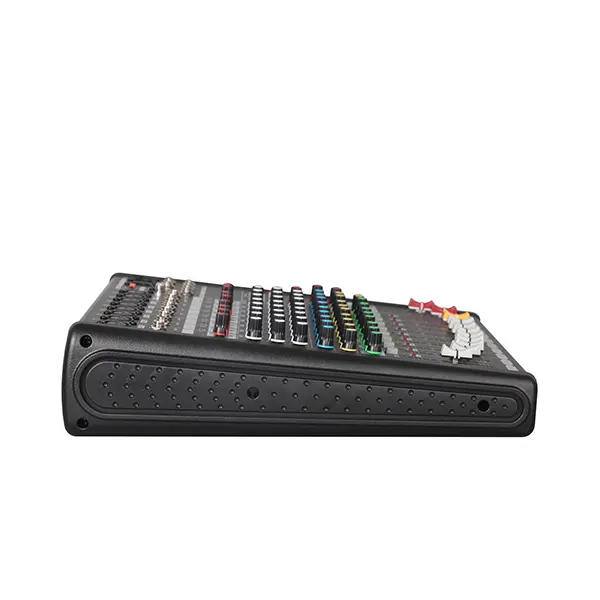

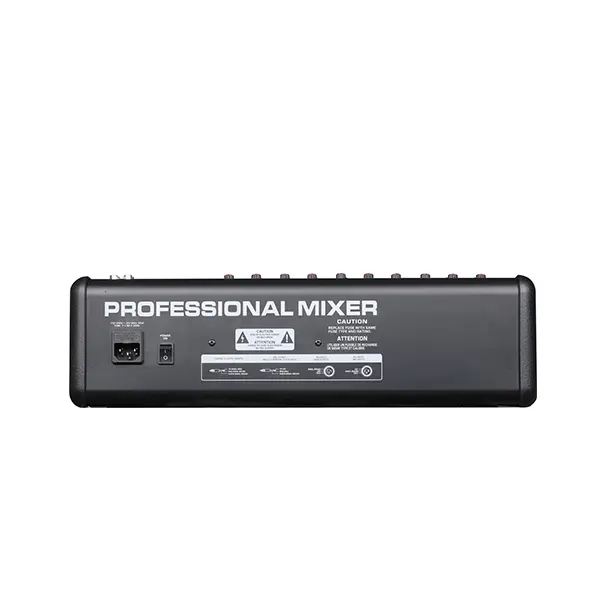

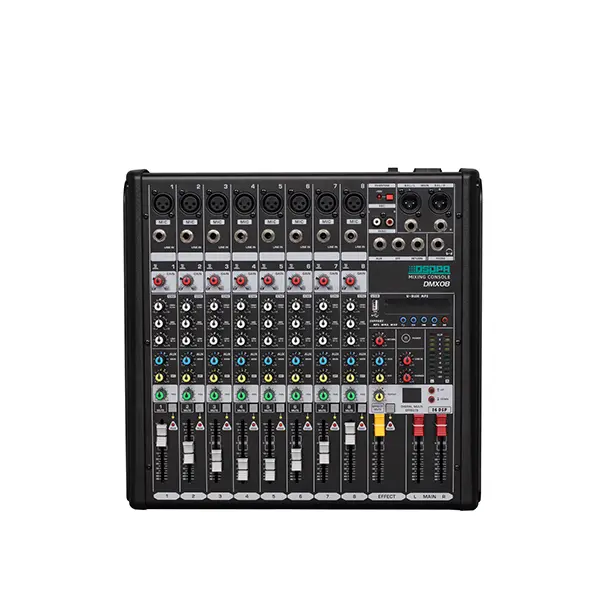

DSPPA 8-Channel Audio Mixer
DMX08
● DMX08, DMX12, DM16
● 8, 12, 16 XLR balanced mono channels input.
● Ultra-low noise circuit design.
● 3 equalization adjustments per channel MUTE mute switch
● 60MM smooth fader attenuator.
● 1 set of return, 1 set of RAC output.
● 48V phantom power supply.
● 16 kinds of DSP digital effector. USB , Bluetooth USB recording.
● LED display , Ten-segment three-color level light
● 1 set of stereo bus output + 2 sets of AUX bus output
Items | DMX08 | DMX12 | DMX16 |
MAX. Output Level | 18dB | ||
S/N | ≥83dB | ||
THD | ≤0.02% @0dB 1KHz | ||
Frequency Response | 20Hz~20KHz±0.5dB | ||
Channel Crosstalk | ＜-75dB @ 1KHz | ||
Input Impedance MIC | 600Ω | ||
LINE | 10KΩ | ||
Output Impedance | 100Ω | ||
MIC IN | -60dB | ||
LINE IN | -40dB | ||
Stereo Input Impedance | 10KΩ | / | |
Channel Gain | -30dB | / | |
3-band EQ | ±15dB | / | |
HI | 12KHz 15dB ±3dB | / | |
MID | 2.5KHz 15dB ±3dB | / | |
LOW | 80Hz 15dB ±3dB | / | |
Output Power | 30W | / | |
Power Supply | 100V-240V/50Hz | / | |
Package Dimensions | 440×440×165mm | 555×440×165mm | 670×440×165mm |
Product Dimensions | 385×367×100mm | 505×367×100mm | 620×367×100mm |
Gross Weight | 5kg | 6kg | 7.5kg |
Net Weight | 4kg | 5kg | 6.2kg |
