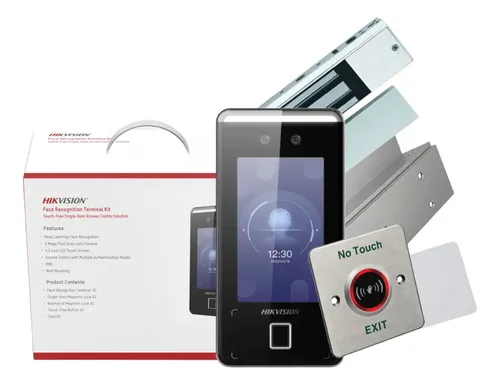

Hikvision Face Recognition Terminal Kit
DS-KAS541

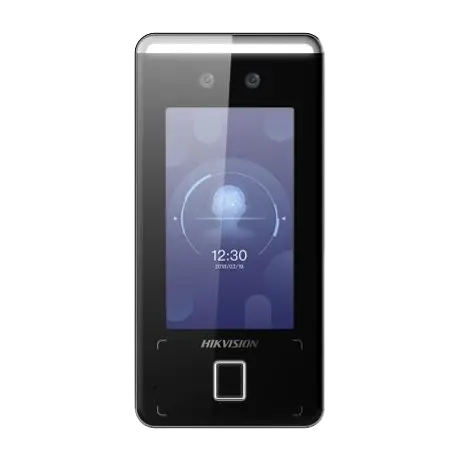

DS-K1T341CMF Face Recognition Terminal
● Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
● Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
● 4.3-inch touch screen with 720p resolution
● Face anti-spoofing
● Face recognition distance: 0.3 m to 1.5 m
● Deep learning algorithm
● 1500 face capacity, 1,500 card capacity, 1,500 fingerprint capacity (should be supported by device model) and 150,000 event capacity
● Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
● Capture linkage and captured pictures storage
● Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software
● Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
● Stand-alone operation
● Manage, search and set device data after logging in the device locally
● Connects to one external card reader via RS-485 protocol
● Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
● Connects to external access controller or Wiegand card reader via Wiegand protocol
● Two-way audio with indoor station and master station
● Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
● Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), and Korean.

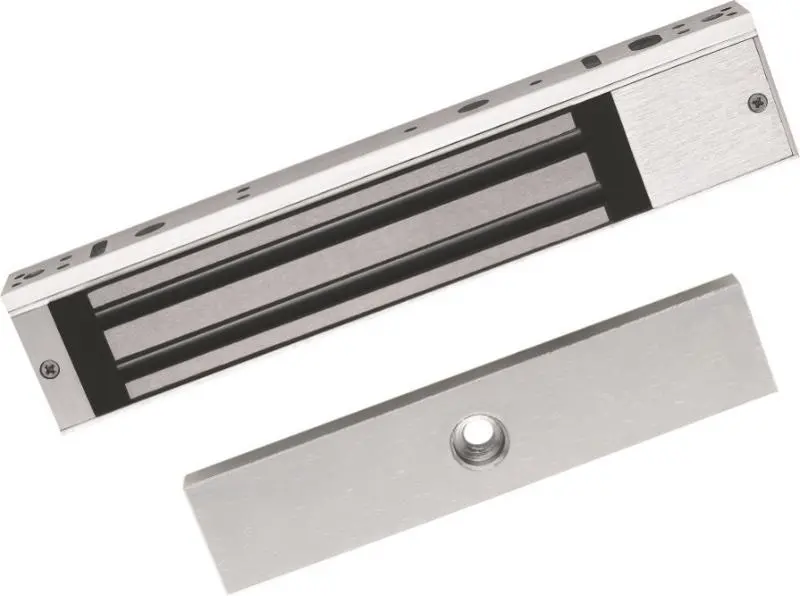

DS-K4H258S Magnetic Lock
● The magnetic lock supports static linear thrust of 280 kg (600 Lbs)
● Default voltage is 12 VDC
● It is equipped with internal voltage dependent resistor (MOV)
● It is applied to wooden door, glass door, metal door and fireproof door
● LED indicator displays the status of door lock
● Anti-residual magnetism design
● Abrasion-proof materials
● The shell is made up of aldural and is hard anodizing electroplated
● No mechanical failure, and the magnetic lock works by electromagnetism force

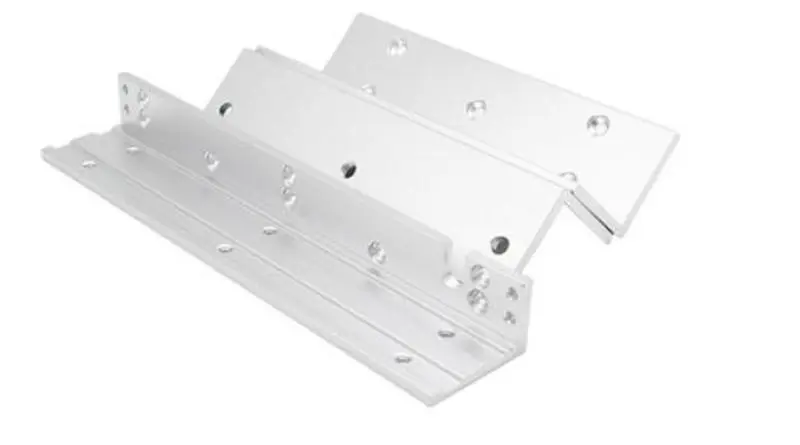

DS-K4H258-LZ Accessary of Magnetic Lock
● Adopts aldural material
● Hard anodizing electroplating operated
● L-bracket is used for fixing the lock body;
● Z-bracket is used for fixing the armature plate
● Suitable for wooden door, and metal door

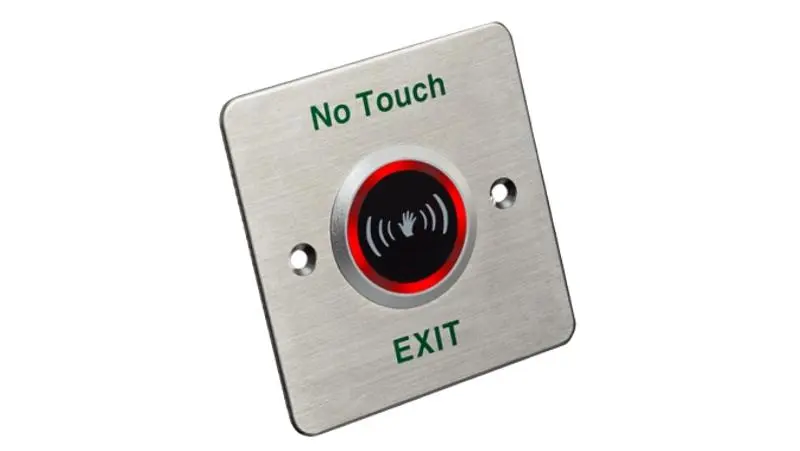

DS-K7P03 Exit Button
● Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39" × 3.39" × 1.01")
● Input Voltage: 12 VDC
● Working Current: 40 mA (standby), 70 mA (working)
● Current Rating: 1 A@30 VDC
● Output Contact: NO/NC/COM contact
● Panel: Stainless steel
● Aging Test: Already passed 1 million times aging test
● Suitable Doors: All kinds of narrow doorframes
● Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
● Working Humidity: 0 to 95% (relative humidity)
● Detection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72")
● Time Delay: 1 to 25 s (adjustable)
● LED Indicator Status: Green/red LED indicates working/standby
● Product Weight: 0.2 kg (0.44 lb)

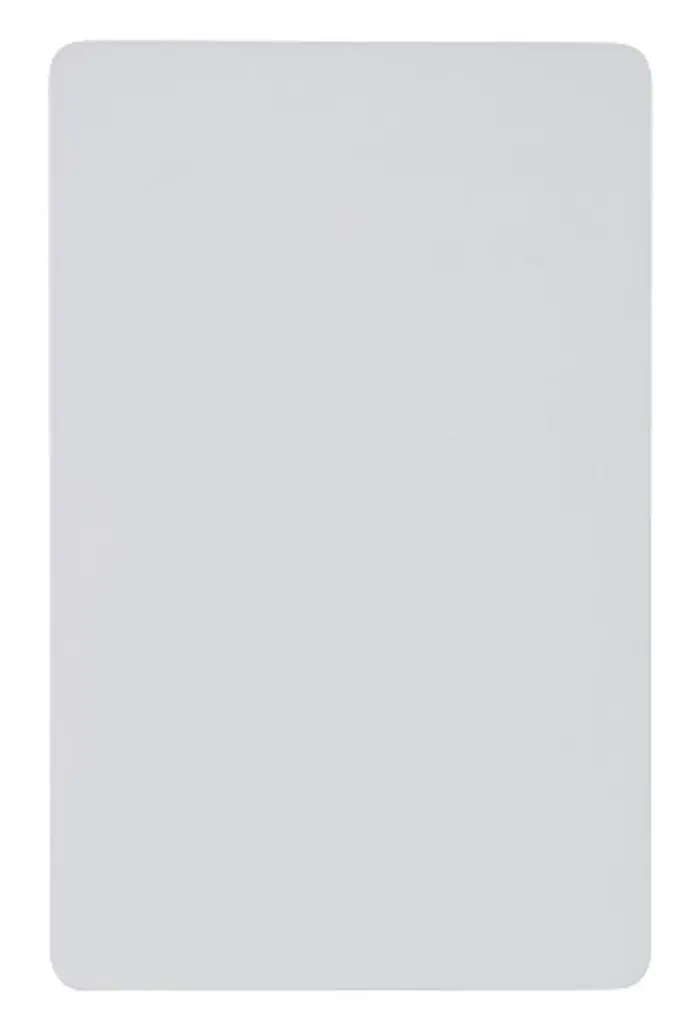

FM11RF08-M1 Card
● M1 contactless smart card, Frequency: 13.56MHz
