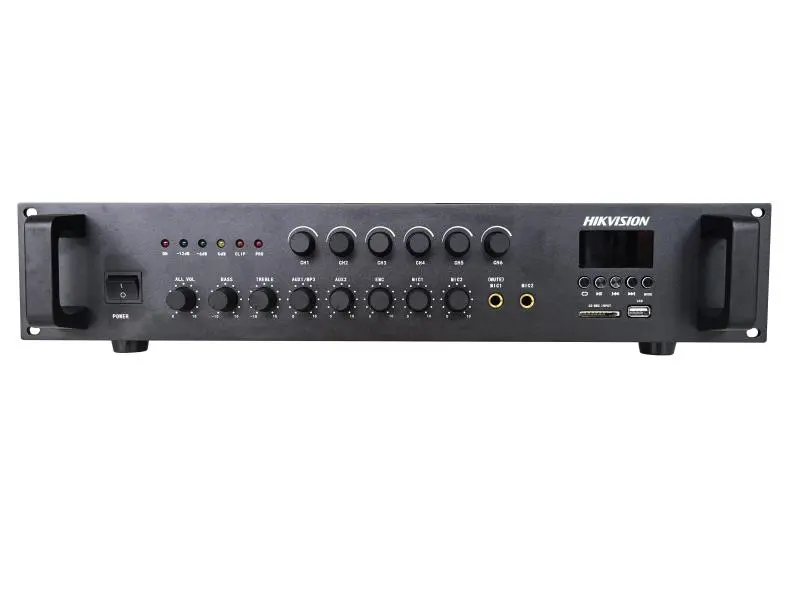

Hikvision 120W 6-Zone Analog Amplifier

DS-QAE0A120G1-VB6

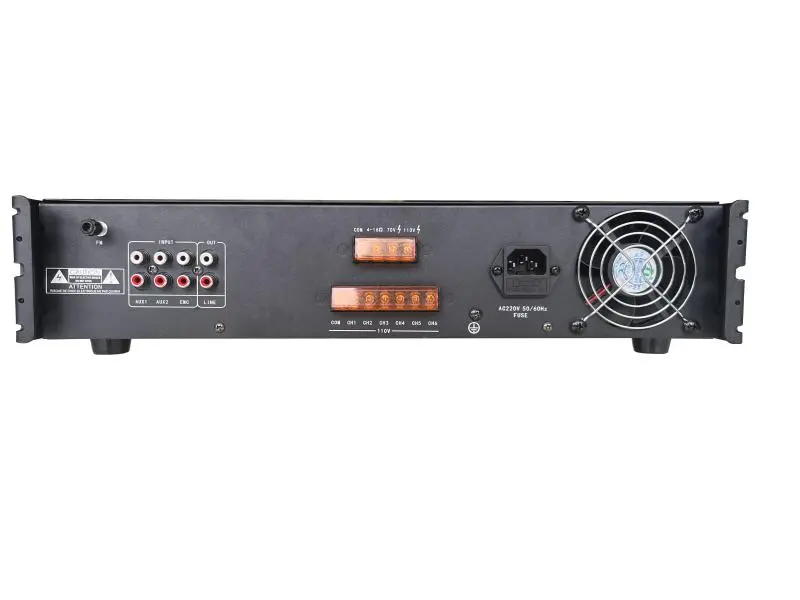

• The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input, and 2 microphone inputs; 1 auxiliary output, capable of cascading to the next power amplifier.
• Microphone 1/2, emergency line input, and line 1/2 can be independently adjusted, and it also has total volume control.
• Built in Bluetooth/MP3 function module for content playback on the phone.
• Equipped with six independent volume adjustment output functions.
• Mic 1 and emergency line EMC inputs have the highest priority level, while Mic 1 and EMC have mixed outputs that can strongly cut other audio input signals.
• Mic 2, Line 1, Line 2, and MP3 (Bluetooth/SD/USB) have mixed output.
• Equipped with high and low frequency adjustment function.
• Equipped with advanced short-circuit, overheating, and overload protection functions.
• The circuit is equipped with amplitude limiting function to prevent excessive output of the amplifier and protect the speaker.
• Supports multiple indicator light displays (power, signal).
• By adopting a forced cooling structure with a fan, the machine can operate for a long time.
