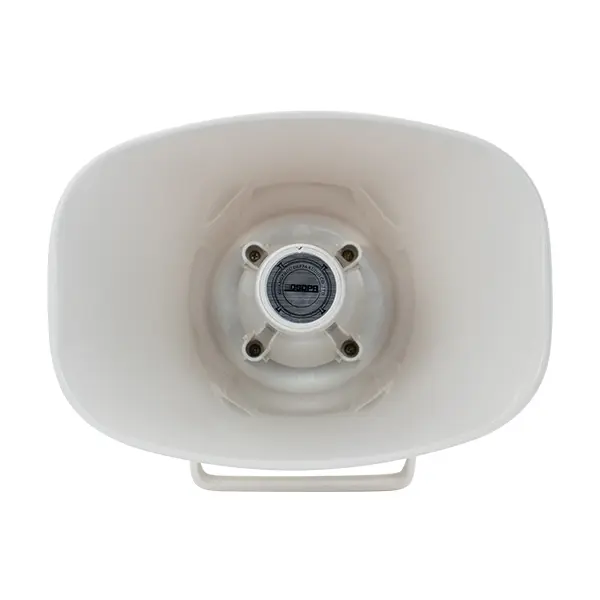

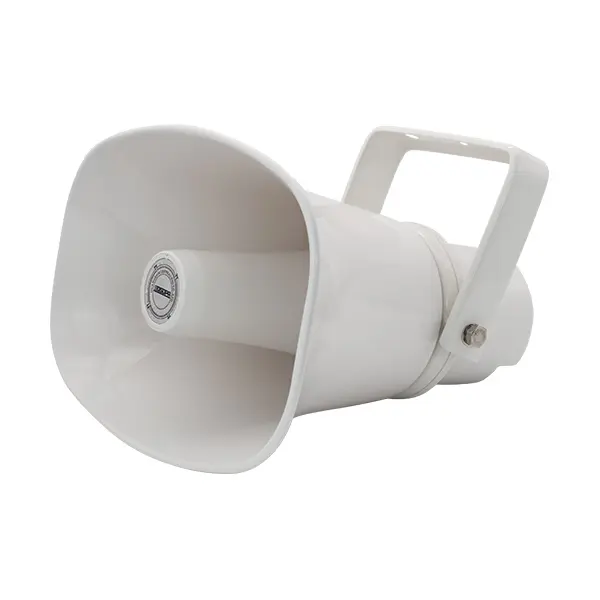

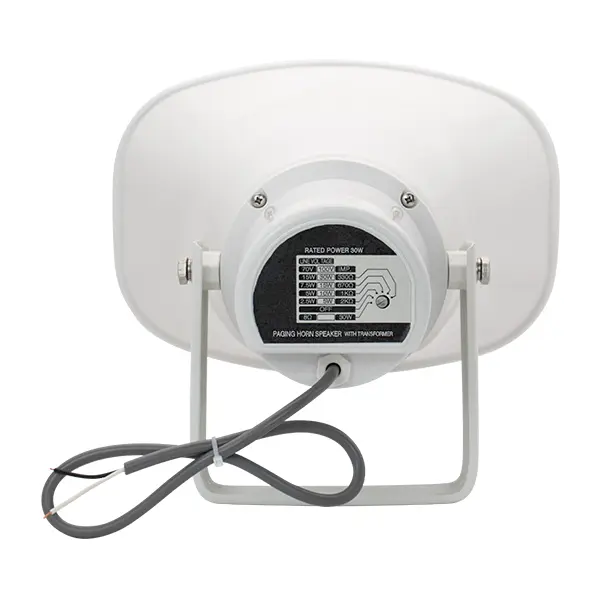

DSPPA 30W Weatherproof Horn Speaker with Power Tap
DSP1130
● Rated power: 30W
● Input signal:70/100V&8Ω
● Input power: 30/15/10W
● Frequency response: 310Hz-5KHz
● Max.SPL(1m): 117±2dB
● Color: White, support OEM color
● IP rating: IP66
● Dimensions: 285*205*280mm
NO | Item | SPECIFICATIONS | |
1 | Rated Power | 30W | |
2 | Input | Constant Voltage | 70V/100V |
3 | Constant Resistance | 8Ω | |
4 | Frequency Response Range | 310Hz-5kHz | |
5 | Sensitivity(1m,1W) | 102±2dB | |
6 | Max.SPL(1m) | 117±2dB | |
7 | Dimension | 285(W) × 205(H)× 280(L)mm | |
8 | Weight | 2.1kg | |
9 | Material&Finish | Finish: White ; Horn: ABS, Bracket: Steel | |
10 | Working Environment | Temp: -20℃~ +40℃, Humidity 45% ~ 85%, Height: <1000m,No Dust,Corrosive gas orVibration | |
Note: [Application Standard：GB/T 3836-2000/ IEC60079.0-2007] |
