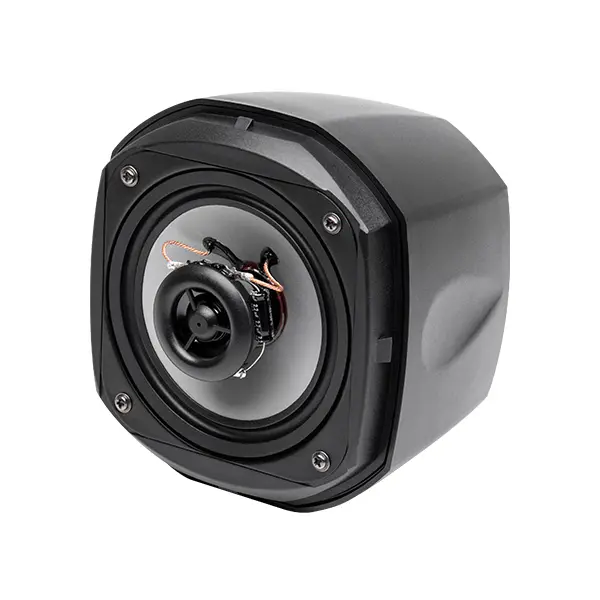

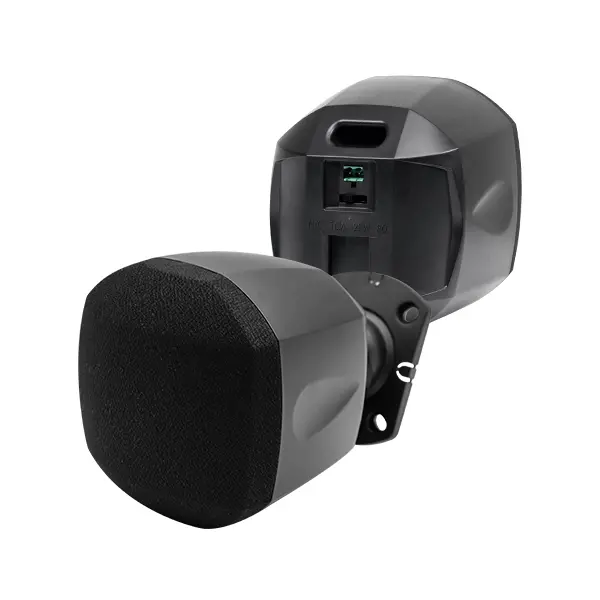

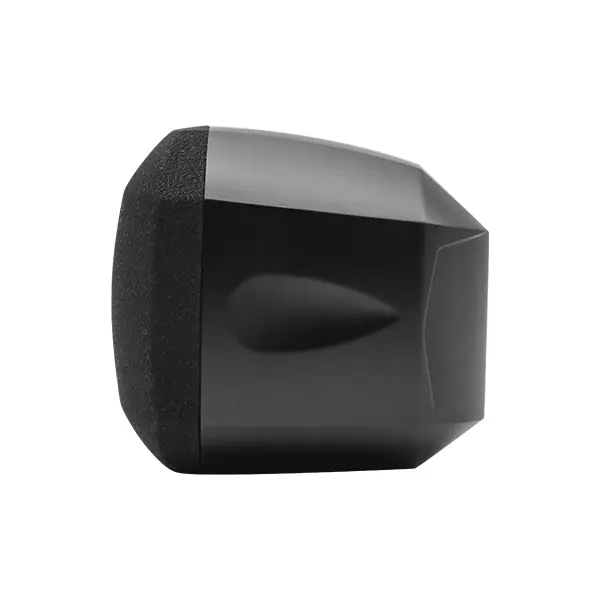

DSPPA 20W Miniature satellite coaxial speaker with power tap
DSP129
● Commercial PA system wall-mounted speaker.
● Rated output power 20W at 70V/100V&16Ω.
● Power tap is optional according to user’s need.
● 4" coaxial driver unit.
● Quick installation with brackets.
● Small and neat appearance with extraordinary sound quality.
● Ideal for offices, hotels, bars and shopping mall public address system.
Model | DSP129 |
Woofer | 4" paper cone |
Frequency Response (±3dB) | 120Hz-20kHz |
RMS Power | 20W |
Sensitivity | 83±2dB |
MAX. SPL. (1m) | 97±2dB |
Transformer | 70V/100V |
70V:5W/10W;100V:10W/20W | |
Nominal Impedance | 16Ω |
Attachment | Bracket/screw |
Product Dimensions | 148×127×138mm |
Housing Material | ABS |
Net Weight | 1.23kg |
