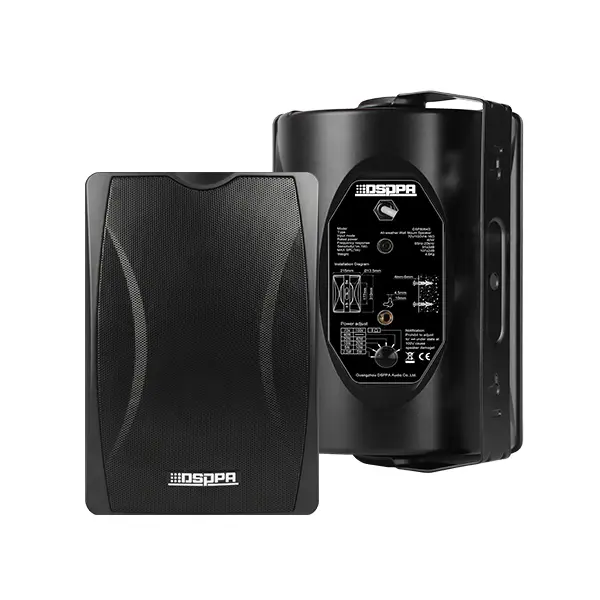

DSPPA 20W Wall Mount Speaker
DSP8062B
● Fashion minimalist design aesthetic atmosphere,white black for choice.
● The integration of professional wall design, fine appearance, sophisticated high-grade filing.
● Focus on sound quality, inverse-phase type design, and equipped with high pitch and low pitch double unit, clear sound level, mellow, transparent, clear and bright, strong bass.
● Rear power adjustable knob, free choice of input mode.
● Mesh: made of 1060 pure aluminium, subject to hardening and anti-oxidation treatment,
● not easy to cause deformation, and never get rusty.
● Box body: made of UL94V-0 grade fireproof thickened ABS material, durable in use,
● safe and reliable.
● Driver unit: treble diaphragm is made of natural silk film; and bass diaphragm is made
● of polypropylene material, 3-3.5 inches magnetic circuit design.
● Mounting bracket: precision rust-proof treatment.
Model | DSP8062 | DSP8063 | DSP8064 | ||
Acoustic System | Speaker Unit | 4"×1, 1"×1 | 5"×1, 1"×1 | 6.5"×1, 1"×1 | |
Sensitivity (1m, 1W) | 90±2dB | 90±2dB | 91±2dB | ||
MAX. SPL. (1m) | 103±2dB | 105±2dB | 107±2dB | ||
Frequency Response | 95Hz-20kHz | 80Hz-20kHz | 65Hz-20kHz | ||
Rated Power | 20W | 30W | 40W | ||
Power Adjustment | 70V | 20W-15W-8W-4W-2W | 30W-15W-8W-5W-2.5W | 40W-20W-10W-5W-2.5W | |
100V | 20W-15W-8W-4W | 30W-15W-8W-5W | 40W-20W-10W-5W | ||
8Ω | 20W | 30W | 40W | ||
Other Specifications | Input | Constant Voltage | 70V/100V | 70V/100V | 70V/100V |
Constant Resistance | 8Ω | 8Ω | 8Ω | ||
Dimensions (H×W×D) | 255×176×170mm | 280×194×185mm | 310×215×203mm | ||
Net Weight | 2.6kg | 3.2kg | 4.6kg |
