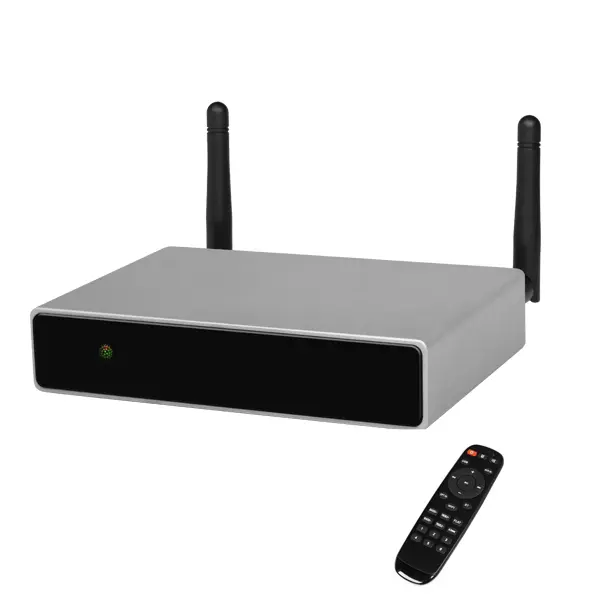

DSPPA WiFi Intelligent Wireless Streaming Amplifier
DW0235
● Streaming music via network without distance limit
● Rated power: 2x35W@4Ω, 2x18W@8Ω
● Support Bluetooth5.0, connection distance up to 15 meters
● Sample rate decoding up to 24bit, 192kHz
● Streaming audio source: online Apps, smart phone, USB, NAS, Bluetooth and line in
● Support Airplay, DLNA, Qplay, NAS and UPnP streaming protocol
● Compatible with third-party app: TuneIn, iHeart Radio,Spotify, TIDAL, Napster, Qobuz etc.
● Support EQ adjustment via app or remote controller
● Support IR controller to realize remote control
● Free iOS and Android app available (4Stream)
● Multiroom and multizone streaming enabled by multiple units connected in same network

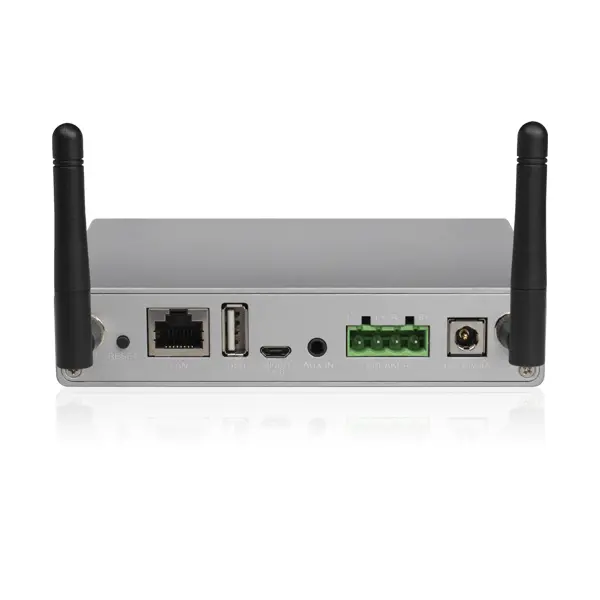

Model | DW0235 | |
Connectivity | Wireless Network | IEEE802.11 b/g/n 2.4G |
Ethernet | Single 10/100M RJ45 | |
BT | 5.0 | |
USB Host | Play USB music | |
Micro USB | Conned PC as external DAC | |
Power Input | 18V/4A | |
Audio Input | 3.5mm Line in | |
Frequency Response | 20Hz to 20kHz | |
Speaker Power | 2x35W@4Ω load at 18V, 2x18W@8Ω load at 18V | |
THD+N | 0.03% @1kHz | |
Speaker Impedance | 4-8Ω | |
Music Format | FLAC/MP3/AAC/AAC+/ALAC/APE/WAV | |
Decoding | Up to 24bit/192kHz | |
Protocols | AirPlay, DLNA, UPnP, Spotify Connec, Qplay | |
Dimensions | 131.8mm*85.5mm*27mm(5.18in*3.37in*1.06in) | |
Weight | 0.35kg (0.771b) |
