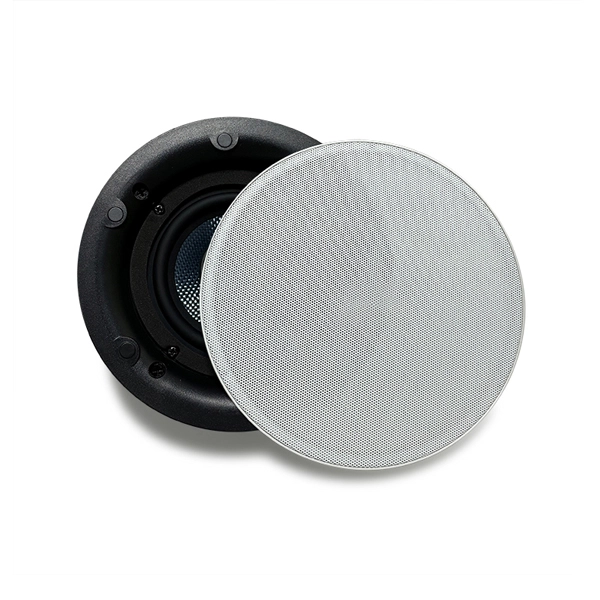

DSPPA 2×30W WiFi Active Ceiling Speaker System
DW2230
● Support Airplay, DLNA , QPlay and other protocols through WIFI or network cable to achieve LAN push play.
● Get rid of the traditional wiring, one cable to complete the installation and deployment (WIFI connection, only need to connect the power cord; or you can connect the device through a POE cable)
● WIFI, BT and LINE-IN (line-in) three kinds of audio sources, use mobile phone APP to switch freely.
● Output 24bit/48Khz sampling rate, the use of high-definition digital amplifier, with crossover, to achieve the ultimate audio experience effect of shocking and powerful bass and penetrating treble.
● Equipped with an amplifier output, it can connect to a slave speaker to form a master-slave stereo system with left and right channels, delivering a total power of 60W. Alternatively, a master speaker can be paired with three slave speakers to create a dual left and right channel setup with a total power of 100W, ensuring high-quality stereo playback.
● Multi-room control function, add multiple WiFi ceiling speakers to your network, you can play different music or the same music separately through the APP, to form a wireless multi-room whole-house audio system (multi-room), it will provide you with a new experience to play and enjoy your music!

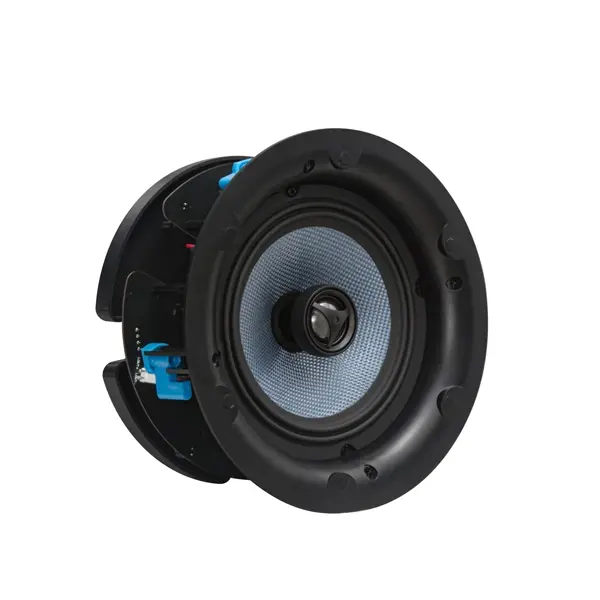

● The speaker unit features a bright blue paper cone and a super-narrow bezel with a magnetic grille design. Inside, it adopts a high-quality coaxial driver design, paired with a crossover that has been carefully tuned by development engineers. This results in more distinct highs and lows, with a more refined sound. It is widely applicable in various sound-quality-focused locations such as villas, gyms, showrooms, meeting rooms, high-end branded stores, and upscale Chinese and Western restaurants.
Model | DW2230 |
Speaker Unit | 6.5” Woofer×1, 1” Tweeter |
Sensitivity (1W@1m) | 88dB |

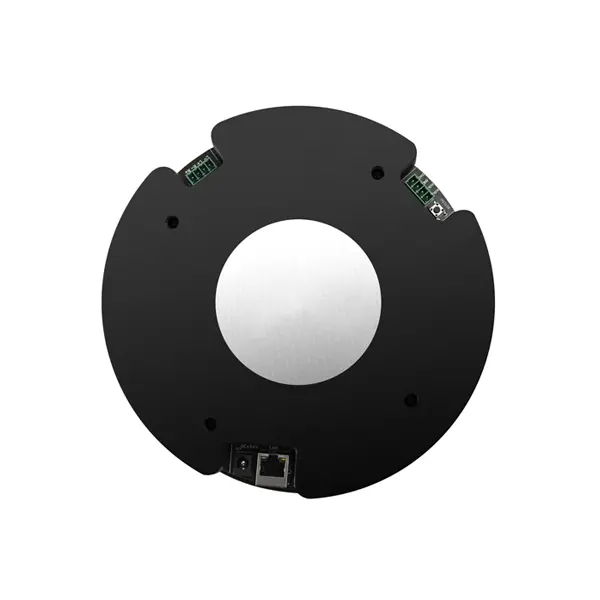

Network Interface | External Standard RJ45, 10M/100M Ethernet Port |
Wireless Parameter | Supports 802.11b/g/n Wireless Network |
Input Power | 48V POE++ or External 24V DC-5A Power Supply (Optional) |
Pairing Reset Button | Press and Hold for 5 Seconds to Restore Factory Settings |
Local Audio Input | 200mVrms |
Rated Impedance | 8Ω |
Audio Input | BT5.0, AUX IN |
Network Push | WiFi 2.4G and LAN |
Music Streaming Protocol | Airplay, DLNA, QPlay, etc. |
Audio Format | MP3/AAC/FLAC/ALAC/WMA/APE/WAV/OGG, etc |
Music Source | Tunein/iHeartRadio/TIDAL/Napster/Qobuz, etc |
Operating Voltage | 48V POE++ (IEEE802.3bt) or optional DC24V-5A adapter |
Output Power | 30W×2 (POE++ Power Supply) or 50W×2 (DC Power Supply) (Optional) |
Frequency Response | 55Hz-22kHz |
Material | Panel & Rear Shell: ABS, Mesh: Iron |
Color | Unit: Blue, Frame: Black, Grille: White |
Product Dimension | Φ220*110H mm |
Cut-Out Dimension | Φ205mm |
Device Depth (mm) | 115mm |

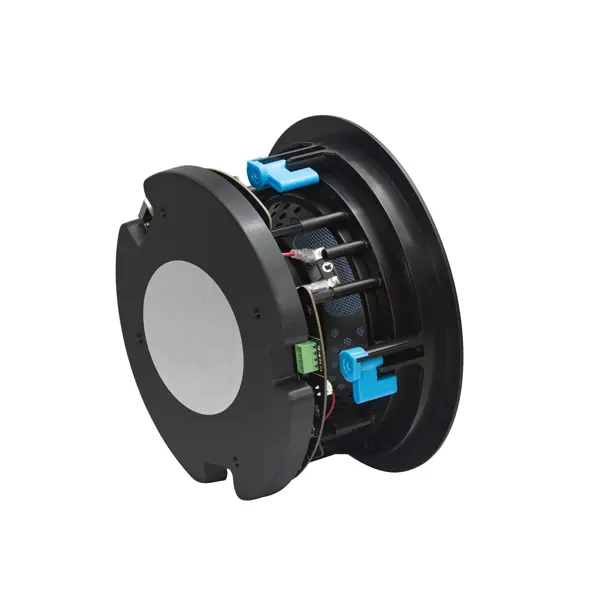

Installation | 4-Prong Rotating Mounting Bracket |
Product Net Weight | 1.5kg |
