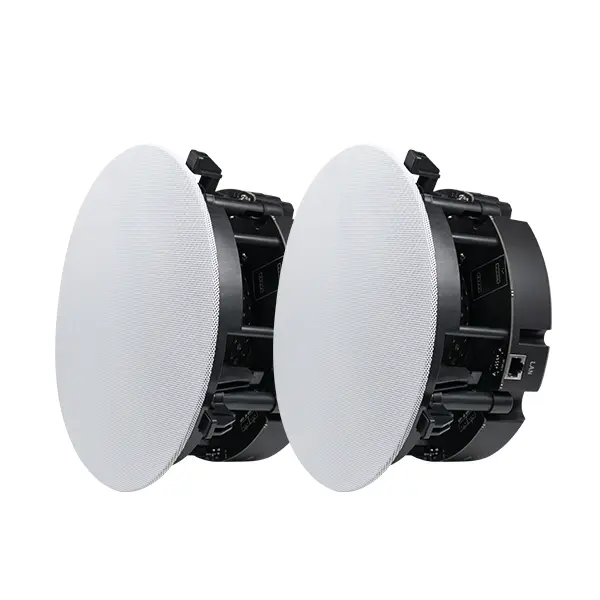

DSPPA 6.5 Inch 2-Way Stereo WiFi & Bluetooth Ceiling speakers -1 Pair Active & Slave
DW2235
● 6.5” Kevlar bass cone driver rubber overhang.
● 1” aluminum dome driver EOS waveguide design.
● 35W LF @4ohm, 15W HF@8ohm full digital amplifier.
● Can hook up a slave speaker to become stereo speakers.
● Streaming music via network without distance limitation or Bluetooth 5.0 up to 15 meters.
● Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported.
● Support streaming source from online services, smart device, NAS, Bluetooth and Line in.
● Multiroom streaming enabled by multiple units connected in same network.
● All music sources can be restreamed in sync to other models from us.
● Spotify, Deezer, Tidal, Qobuz, Amazon Music, Napster, Pandor, Internet Radio, iHeartRadio, TuneIn, QQMusic, lots of online streaming services integrated to use in the app.
● Free iOS and Android app available.
● Free global online update for new features.
● EQ adjustment via app or remote controller.
Model | DW2235 | |
Master Speaker (Stereo set / Mono) | ||
Connections | ||
Power Supply | 24V/4.16A | |
Audio Input | AUX (3.5mm) | Max 1V RMS input |
Buetooth 5.0 | AAC FLAC | |
Audio Output | Speaker out | |
Network | WiFi | 2.4G |
Standard | 802.11 b/g/n 1T1R | |
Frequency | 2.412GHz-2.484GHz | |
Transmit | 802.11b: +20dBm(Max.) | |
802.11g: +18dBm(Max.) | ||
802.11n: +15dBm(Max.) | ||
Receive Sensitivity | 802.11b: -89dBm | |
802.11g: -81dBm | ||
802.11n: -71dBm | ||
LAN | RJ45 | |

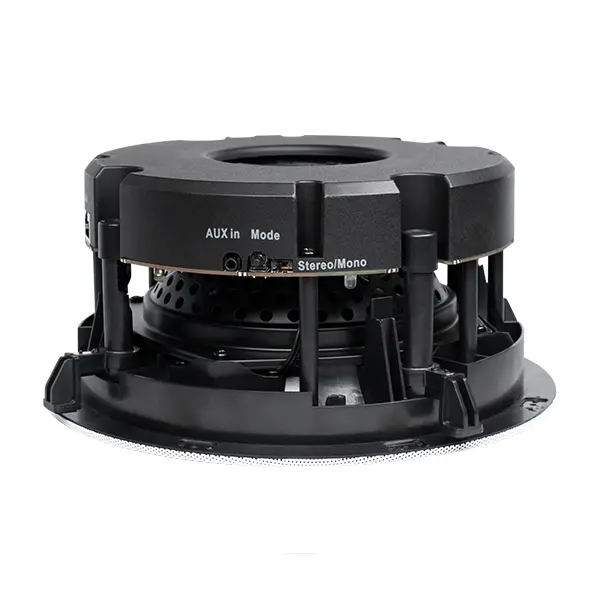

Stereo / Mono Switch | Switch Stereo / Mono Output: Stereo: Master speaker output Right channel, Slave speaker output Left channel Mono: Left + Right Channel for both speakers | |
Mode Button | Change Source Mode: WiFi / BT /AUX in | |
Speaker | ||
Bass | 6.5 inch kevlar bass cone driver rubber overhang | |
Tweeter | 1 inch aluminum dome driver EOS waveguide design | |
Sensitivity | Bass: 86±3dB Tweeter: 89±3dB | |
Size | 23cm×10.5cm (deep) | |
Amplifier | ||
High/Low Frequency | LF 4Ω 35W *2 HF 8Ω 15W *2 | |
Frequency Response | LF: 60Hz-2500Hz HF: 3000Hz-20000Hz | |
Signal Noise Ratio | ≥85dB | |
THD+N | ＜0.9% | |
Crosstalk | ＞55dB | |
Slave Speaker | ||
Connections | ||
Audio Input | Speaker out | |
Speaker | ||
Bass | 6.5 inch kevlar bass cone driver rubber overhang | |
Tweeter | 1 inch aluminum dome driver EOS waveguide design | |
Sensitivity | Bass: 86±3dB Tweeter: 89±3dB | |
Size | 23cmx10.5cm (deep) |
