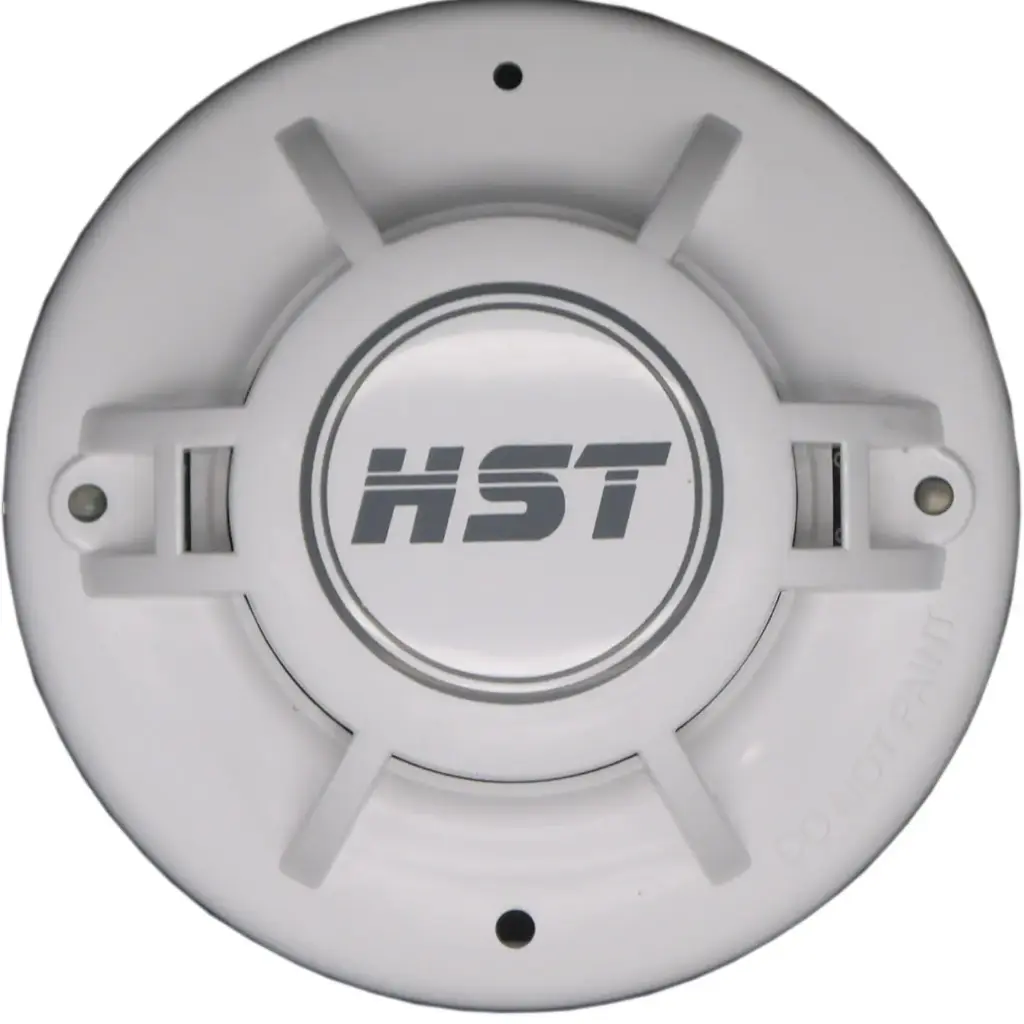

HST Conventional Heat Detector

HD102-B

• Operating Voltage Range: 16 to 28VDC Volts Non-polarized
• Standby Current: 40μA @ 28 VDC(Maximum)
• Alarm Current (LED on: ) 30mA @ 28 VDC(Maximum)
• Temperature Class: A2R
• Operating Temperature Range: 14°F to 122°F (-10°C to50°C)
  Description
  This detector can be used in all areas where heat detector is required. It is suited for fires ranging from heat to flaming fires. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360° visible for indication of status. In the normal condition the LEDs flash red every 5 seconds. When the detector senses heat goes into pre-alarm sensitivity the LEDs will flash red every 1 second. When the detector senses heat and goes into alarm the LEDs will latch on red. The alarm can be reset only by a momentary power interruption.
