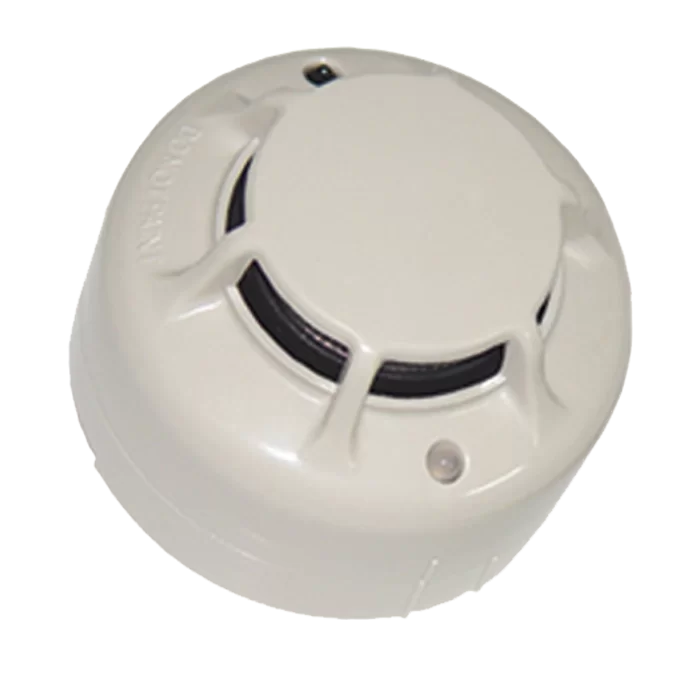

HST Conventional Multi Detector Mini Type

HD103-mini

* Operating Voltage Range  -   9 to 28 VDC Volts Non-polarized

* Standby Current  -   ≤120µA@24VDC

* Maximum Alarm Current (LED on)  -   ≤30mA@24VDC

* Operating Humidity Range  -   ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing

* Operating Temperature Range  -   -10°C to 50°C (14°F to 122°F)

* Smoke Alarm Sensitivity  -   1.06±.26%FT

* Fixed Temperature Rating  -   57°C

* Rate of Rise Detection  -   Responds to greater than 8.3°C /min

* Height  -   42 mm installed in Base

* Diameter  -   64 mm
