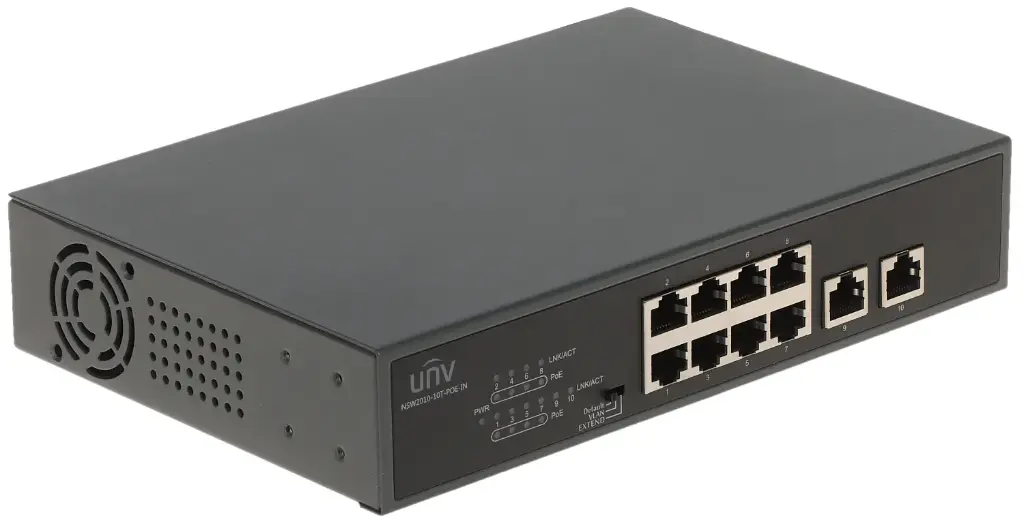

Uniview Ethernet Switch 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)
NSW2010-10GT-POE-IN
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
| Hardware Specification | |
| Ports Type | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching capacity | 20 Gbps |
| Packet Buffer | 2 M bit |
| Forwarding performance | 14.88Mpps |
| MAC | 2K |
| PoE | support POE |
| Cooling Fans | 1 |
| Weight | <1.24kg |
| Operating humidity | 10%～90% (non-condensing) |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm (8.7"×5.9"×1.7") |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
