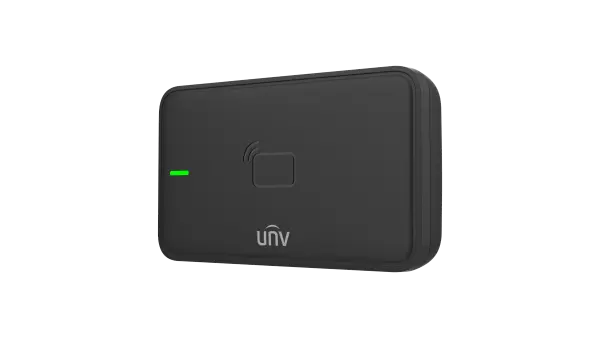

Uniview Desktop Mifare Card Issuer
OEC-W2D-M
• Supports USB power supply.
• Supports Mifare card.
• Supports reading card numbers and writing data to a card’s specified sectors.
| Hardware Specification | |
| Material | PC |
| Weight | 0.17kg (with package), 0.058kg (net weight) |
| Mount Method | Desktop mount |
| Power Supply | Voltage: DC 5V (powered by USB), current ≤ 116mA |
| Operating Frequency | 13.56MHz |
| Reading Distance | IC card: ≤ 3cm |
| Operating Environment | Temperature: -30°C to 65°C, humidity: 10% to 90% |
| Dimensions (L x W x H) | 110mm*65mm*24mm |
| Interface | USB (plug and play, driver-free) |
| Basic Business | |
| Card Protocol | ISO 14443-A, ISO 14443-B |
| Reading Time | < 1s |
| Data Format | 10-digit decimal card number |
| Specification Index | |
| Application Scenario | Indoors |
