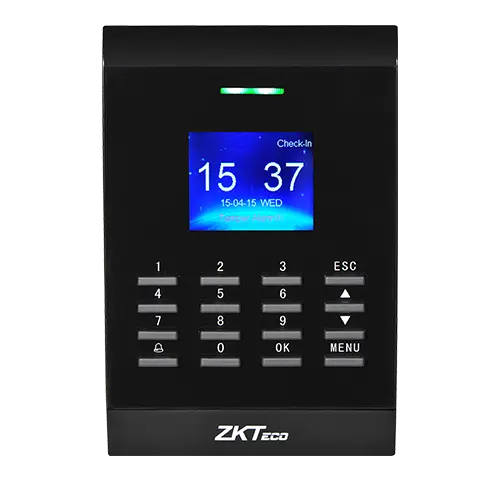

ZKTeco Color TFT & Graphical UI RFID Access Control Terminal

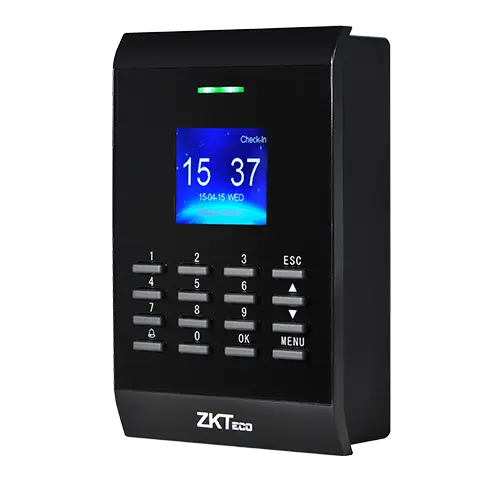

SC405

Parameters

• ID Card Capacity: 30,000

• Transaction Capacity: 80,000/100,000 (For 64M)

• Communication: TCP/IP, RS485*, USB-Host

• Interfaces for Access Control: 3rd party electric lock, door sensor, exit button, alarm, doorbell

• Auxiliary Interface: 1ea for linkage function

• Wiegand Signal: Output & Input, SRB

• Standard Functions: ID Card, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID, Scheduled Bell, Anti-passback

• Optional Functions: IC Card, Print Function

• Display: TFT LCD Color Screen

• Power Supply: DC 12V

• Operating Temperature: 0°C ~ 45°C

• Operating Humidity: 20% ~ 80%

• Dimension: 143 x 96 x 42mm (L*W*H)

• SDK: Standalone SDK

• Software: ZKBio CVAccess
