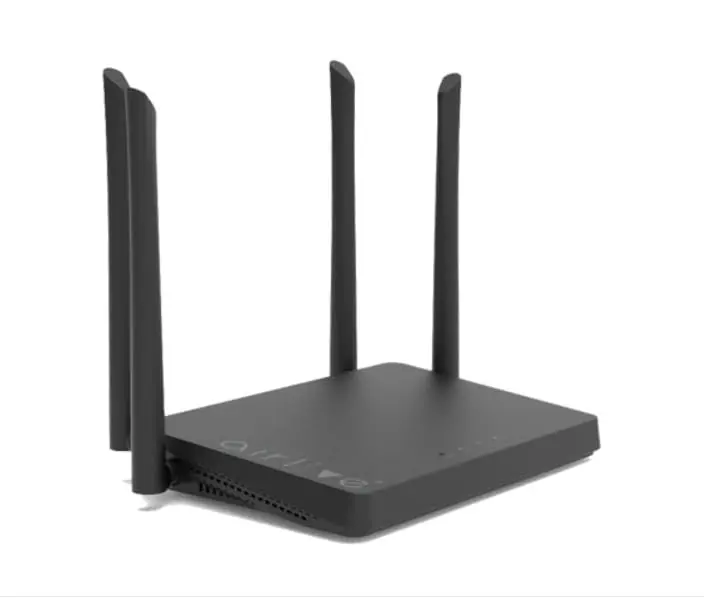

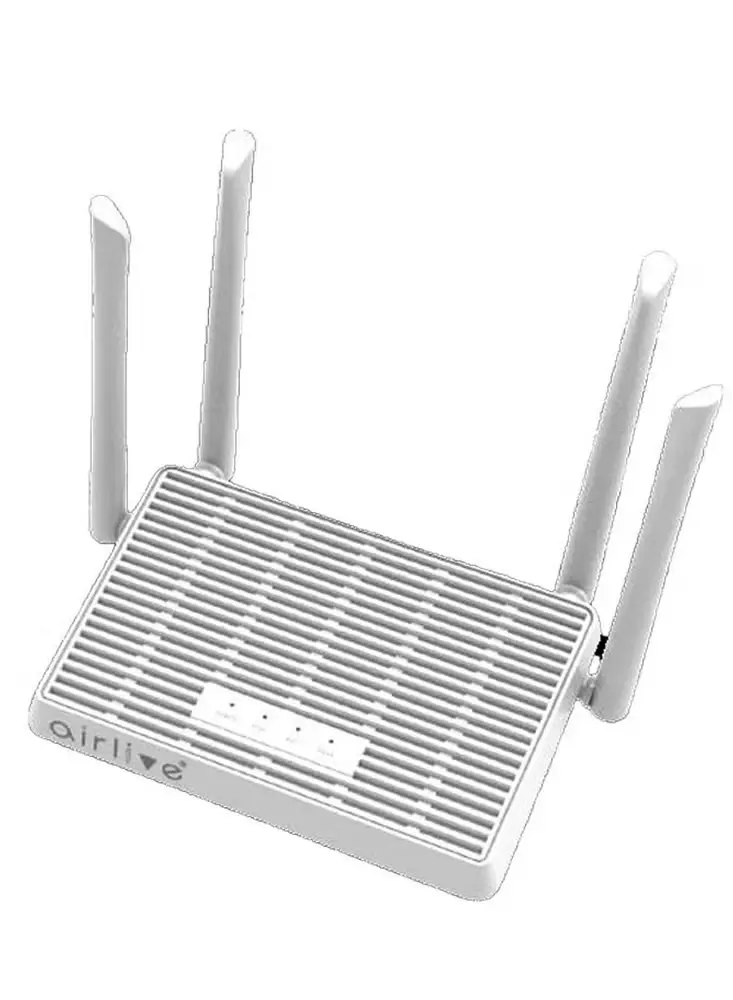

Airlive Wi-Fi 6 1800Mbps Easy MESH & VPN Dual Bands Gigabit Router
W6184QAX
| Model | W6 184QAX : Wi-Fi 6 1800Mbps Easy MESH & VPN Dual Bands Gigabit Router |
Device Interface | Main Chip: Qualcomm IPQ6000, Quad Core, 64-bit Flash:128MB RAM:DDR3 256MB Ethernet (LAN): 3 x RJ45 10/100/1000mbps WAN: 1x RJ-45 10/100/1000mbps WiFi: - 2 x 802.11ax/ac/n 2T2R(2.4Ghz) - 2 x 802.11ax/ac 2T2R (5Ghz) Button: WPS/Reset x 1, MESH x 1, Power x 1Power Input: 1 x 12VDC 1 or 1.5A acceptable Data Rate: 5.8Ghz 1200Mbps, 2.4Ghz 600Mbps Antenna Connector: - 2 x Wireless Antenna 5dBi (5Ghz) - 2 x Wireless Antenna 5dBi (2.4Ghz) |
| WAN | WAN: PPPoE, DHCP, Static IP, Transparent Bridge |
| WiFi | Standard: IEEE 802.11a/b/g/n/ax, 2x2, 20/40/80 MHz channels Functions: Multi-SSID, SSID hidden ,SSID isolation Security: WEP, WPA, WPA2, WPA3,WPA-PSK, 802.1x Modulation : 1024-QAM modulation rates Wi-fi Advanced: Wireless client isolation, STBC, WMM multimedia acceleration Wireless Channel (CE Only) - 2.4G: 1~13 - 5.8G: 36,40,44,48,52,56,60,64,100,108,112,116,120,124,128,132,136,140 Wireless TX Power (CE Only)- 2.4G:20dbm Max - 5.8G:TX 23dbm Max Wireless Frequency Range (EG Only)- 2.4G: 2.4-2.4835GHz - 5.8G: 5.150~5.250Ghz Wireless TX Power (EG Only)20dbm Max |
| IPv6 | IPv6 RA/ Prefix apps |
Firewall/Filtering | Firewall Level: high, Middle, low Filter Rule: URL Filter/Mac Filter URL filtering: White list/Black List. |
| DMZ | DMZ |
| IPTV | VLAN support, IPv4, IPv6 LAN1/LAN2/LAN3 |
Port Forwarding Rule/Range | TCP/UDP |
| VPN | PPTP L2TP VPN Server L2TP/PPTP client |
| UPnP | UPnP |
| DDNS | 3322.org dyndns.org no-ip.com easydns.com dnsexit.com Dnsomatic.com he.net dnsdynamic.org |
Parental Control | Mac Address Filtering URL Filtering |
| MESH | Easy Mesh Controller Agent Status |
| SNMP | V1/2c agent |
Data Statistics | Lan WAN WIFI 2.4G WIFI 5.8G |
Multiple Language | English / Arabic |
Environment | Operating temperature：0°C ~ +50°C Storage Temperature：-10°C ~ +70°C Humidity：10% ~ 90% (non-condensing) Enclosure： Plastic |
Ordering Information
| Model | AirLive W6 184QAX - W6 184QAX: Wi-Fi 6 1800Mbps Easy MESH & VPN Dual Bands Gigabit Router AirLive W6 184QAX-EG- W6 184QAX: Wi-Fi 6 1800Mbps Easy MESH & VPN Dual Bands Gigabit Router |
| Standard Package | |
| Package Size | 27.5(L) x 27(W) x 4(H) cm |
| Package Weight | N.W: 0.5KGS G.W: 0.6KGS |
| Package Content | 1 x Router, 1 x Power Adapter |
| Carton Package | |
| Quantity | 20 PCS / 1 Carton |
| Dimensions | 56(L) x 46.5(W) x 30(H) cm |
| Weight | 13.6 KGS |
